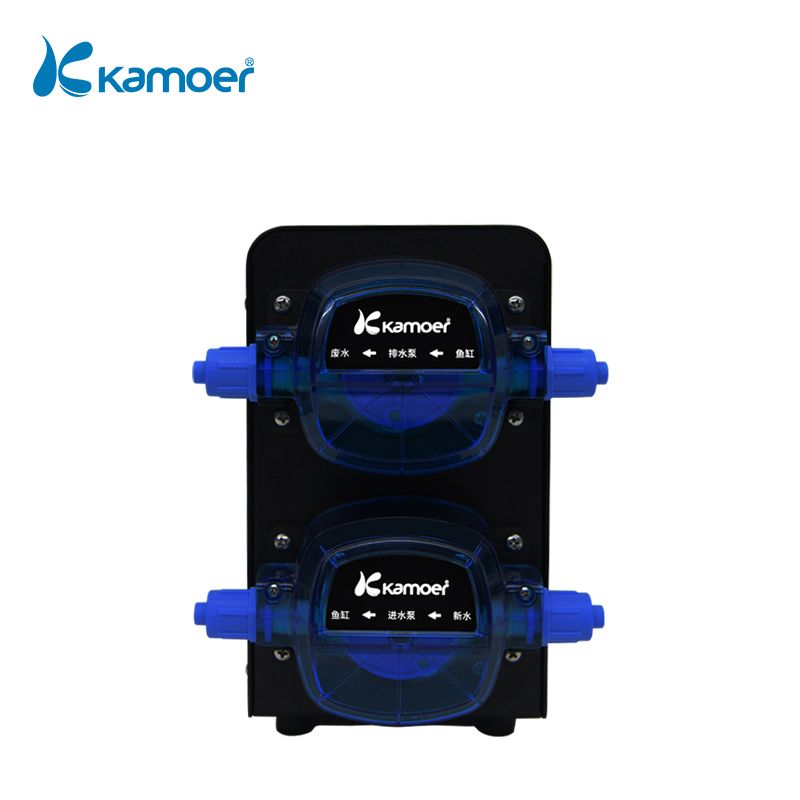

Kamoer X2SR Water Change System

Automatically Perform Water Changes

X2SR is a water change system that can remotely control it through the mobile phone App using WiFi. The automatic water replenishment function can be completed through the submersible pump interface. To mitigate possible overflow risks, X2SR comes standard with an anti-overflow sensor. When the water level reaches the anti-overflow sensor, an alarm will be triggered, and the water supply and change will stop.

Basic Parameters

Flow: More than 900ml/min
Power Adapter Input: 100VAC -240VAC
Output: DC24V 1.9A
Number of dosing: 24 times/day-1 time/99 days
Interface: WiFi (App remote control)
Working environment: Temperatures: 0 - 70℃; Humidity: 10% - 90% (non-condensation)
Dimensions (L*W*H): 168*177*223mm (including pump head)
Weight: 4.106KG (not including power supply)
Max Head Pressure: 32ft

Packing List

X2SR ×1
Power adapter body (DC24V 1.9A)
Power adapter plug (US/UK/EU/AU)
Plastic cylinder (50ml)
PVC tube 9.5*12.5mm; green 6m
Kamoer tube manifold Transparent
Float level sensor(headphone plug)
Float level sensor bracket
Magnet (black)
A submersible pump(DC 24V)
Male-to-male line
12 PVC connecting pipe for auto top-off 8*11mm transparent 1.5m
Anti-siphon connector(1/4 straight)
Grease ×10g
Quick start guide
Qualified certification

More Details

1. The outlet of drain pump, connect to wastewater bucket
2. Inlet of drain pump, connect to the fish tank
3. The outlet of refill pump, connect to the fish tank
4. The inlet of the refill pump, connect to fresh seawater
5. DC24V pump, connect to submersible pump
6. Liquid level sensor for detecting whether freshwater is empty
7. Liquid level sensor for detecting whether wastewater is full
8. Anti-overflow sensor for detecting whether the tank reaches the warning water level
9. The liquid level sensor used to maintain the normal water level of the fish tank
10. Reset button for configuring the network
11. DC24V IN, power input
12. Drain pump running indicator
13. Power/Wi-Fi status indicator
14. Refill pump running indicator
15. The button of Drain pump, long-press the button to run
16. The button of Refill pump, long-press the button to run

Precautions

★ Please use the product's own power adapter and work in the specified working environment.
★ This product only supports 2.4G Wi-Fi, not 5G Wi-Fi.
★ Perform flow calibration before using the device to ensure that the water output is the same as the water input when changing water.
★ The connecting pipe for the liquid inlet should be as short as possible, and the connecting pipe for the liquid outlet should be suspended above the tank.
★ Please carefully check whether the connection direction of the water inlet and outlet is correct, and do not connect them in reverse.
