HYDROS Control 4 Starter Pack

Achieve Ultimate Aquarium Control with the HYDROS Control 4 Starter Pack

This starter kit includes all essential equipment needed to monitor and control a healthy aquarium including a Control 4 device, HYDROS App, temperature sensor, pH probe, and more. Set up is quick and easy, making this ideal for both beginner and advanced hobbyists. All HYDROS products are engineered, assembled, and supported in the USA.

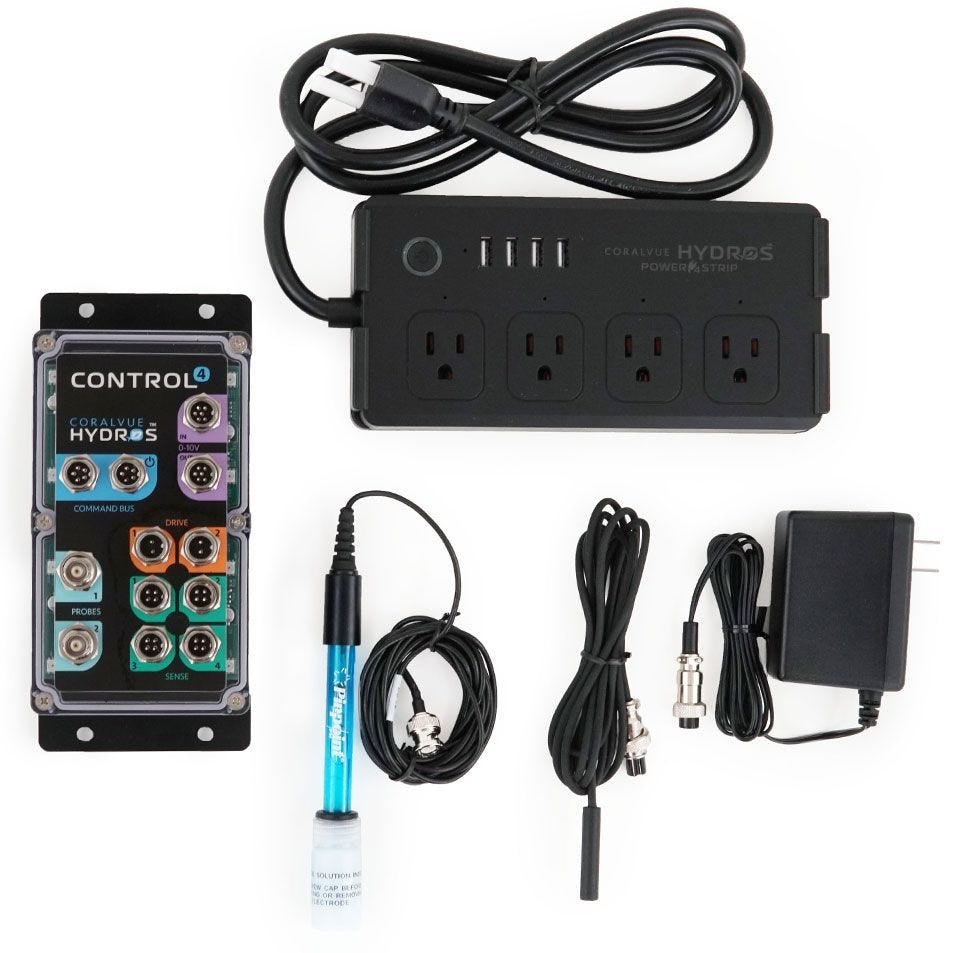

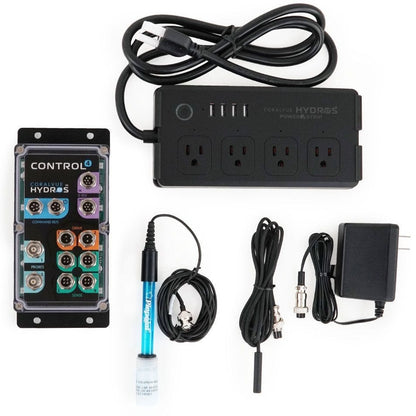

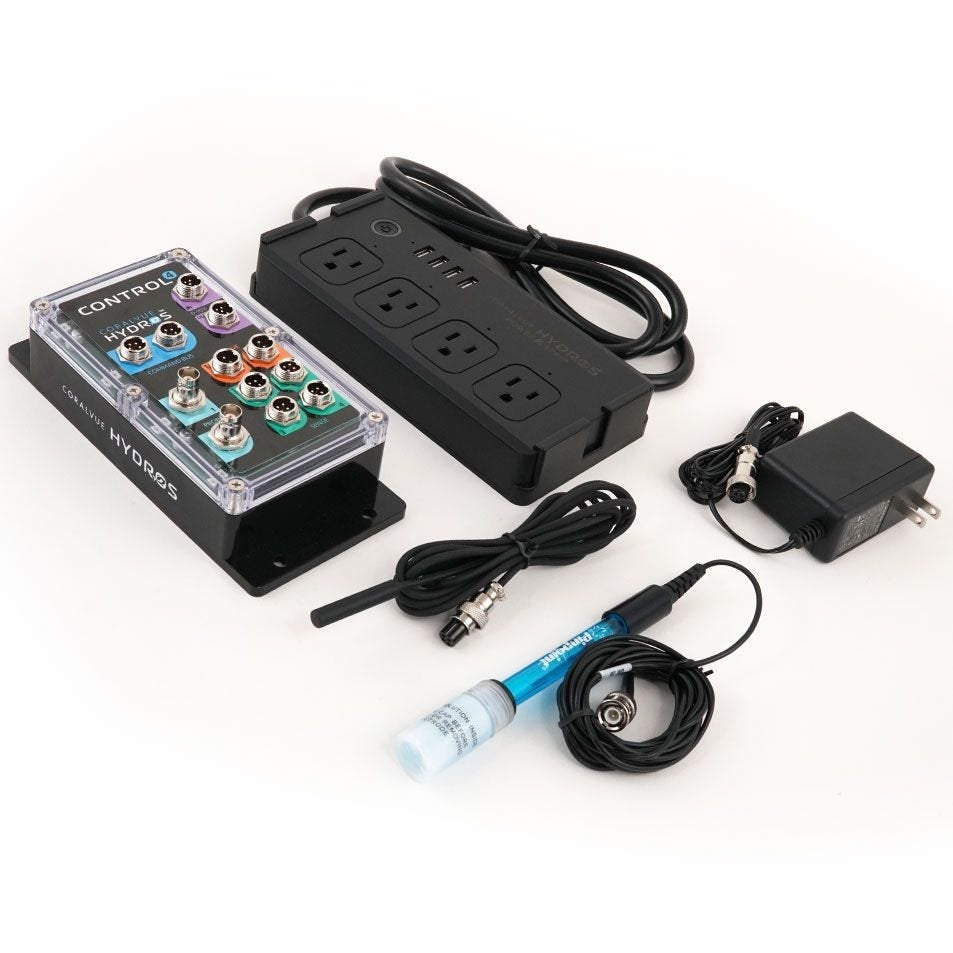

What’s Included:

• 1x Control 4 Unit

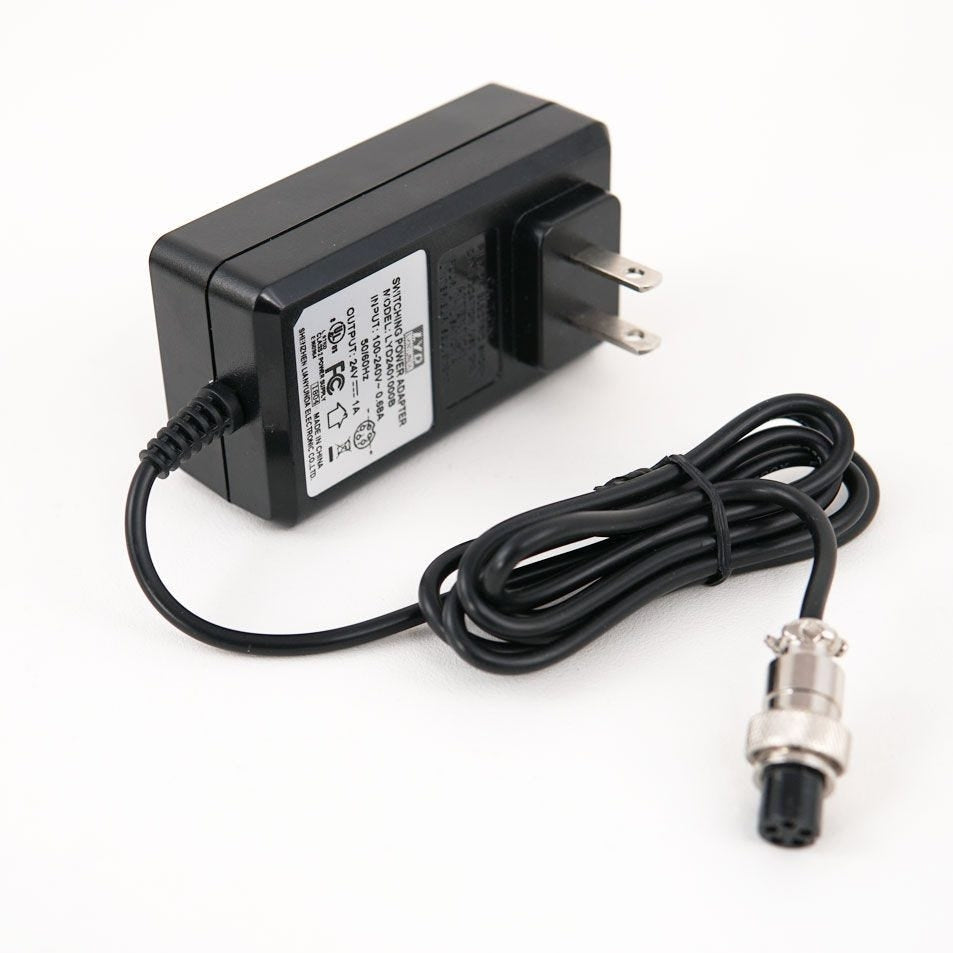

• 1x Power Supply

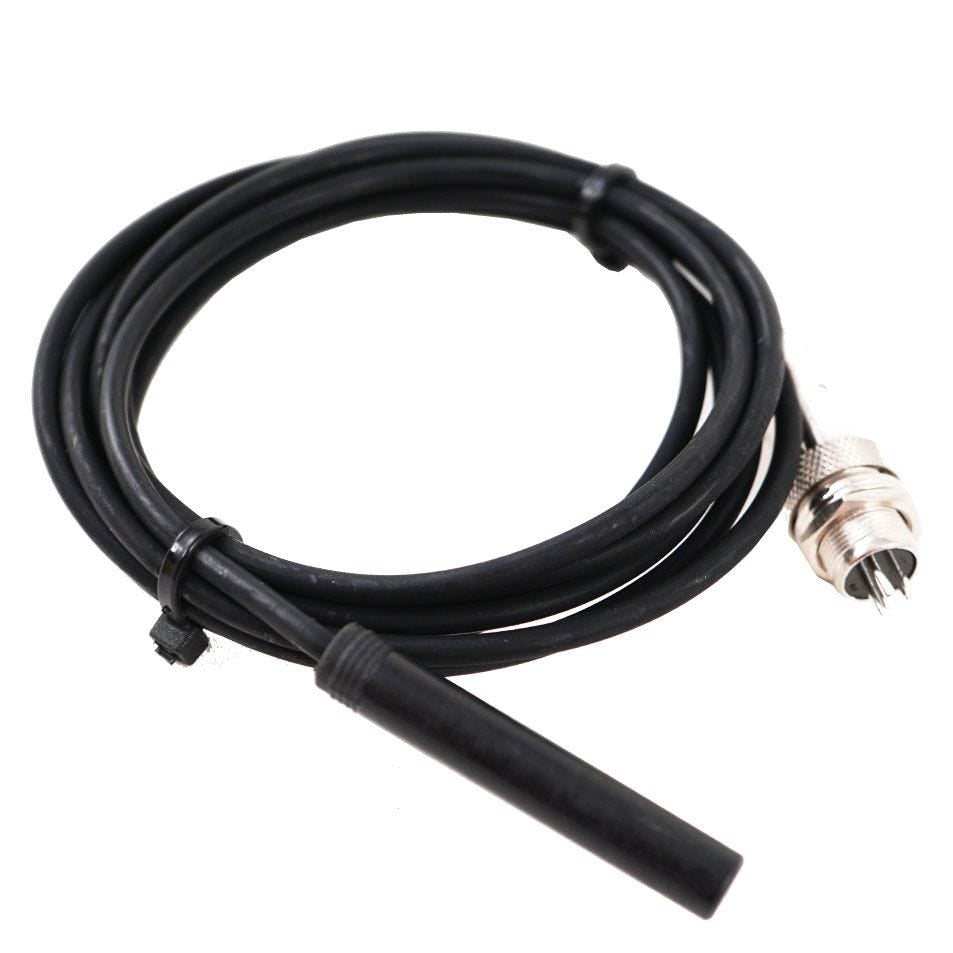

• 1x Temperature Sensor

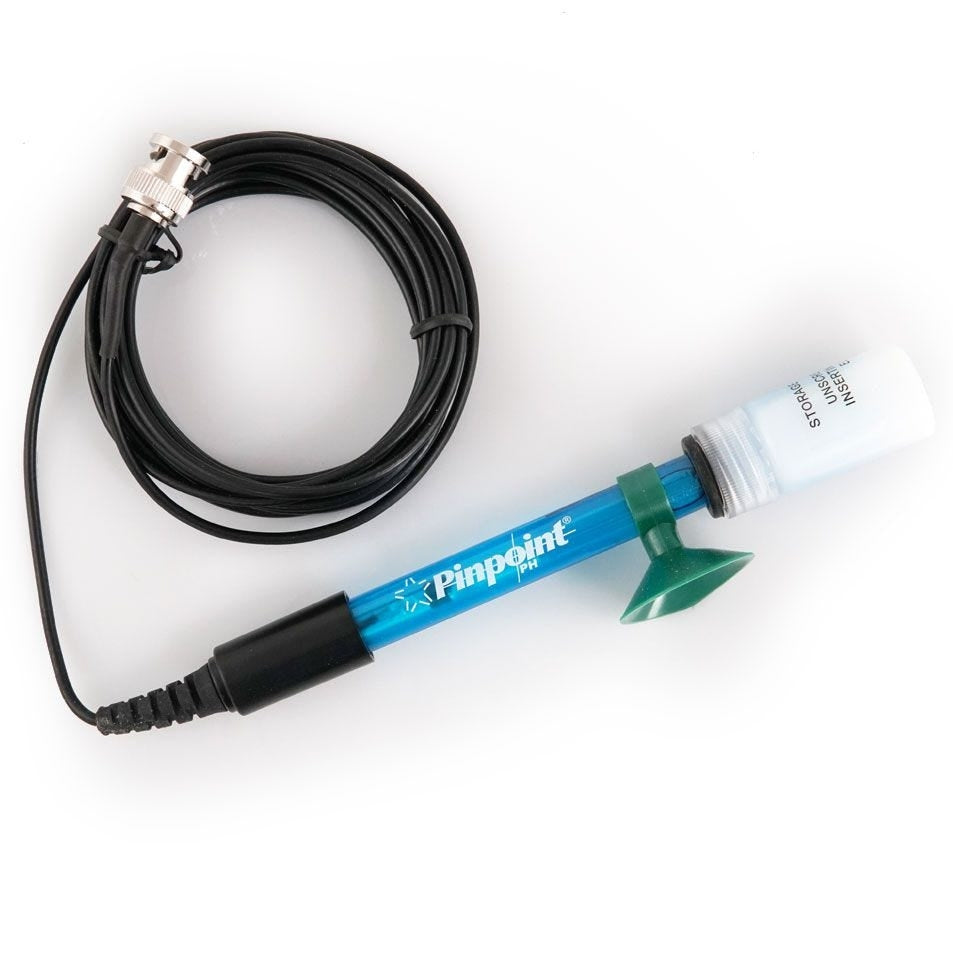

• 1x pH Probe & Calibration Solutions

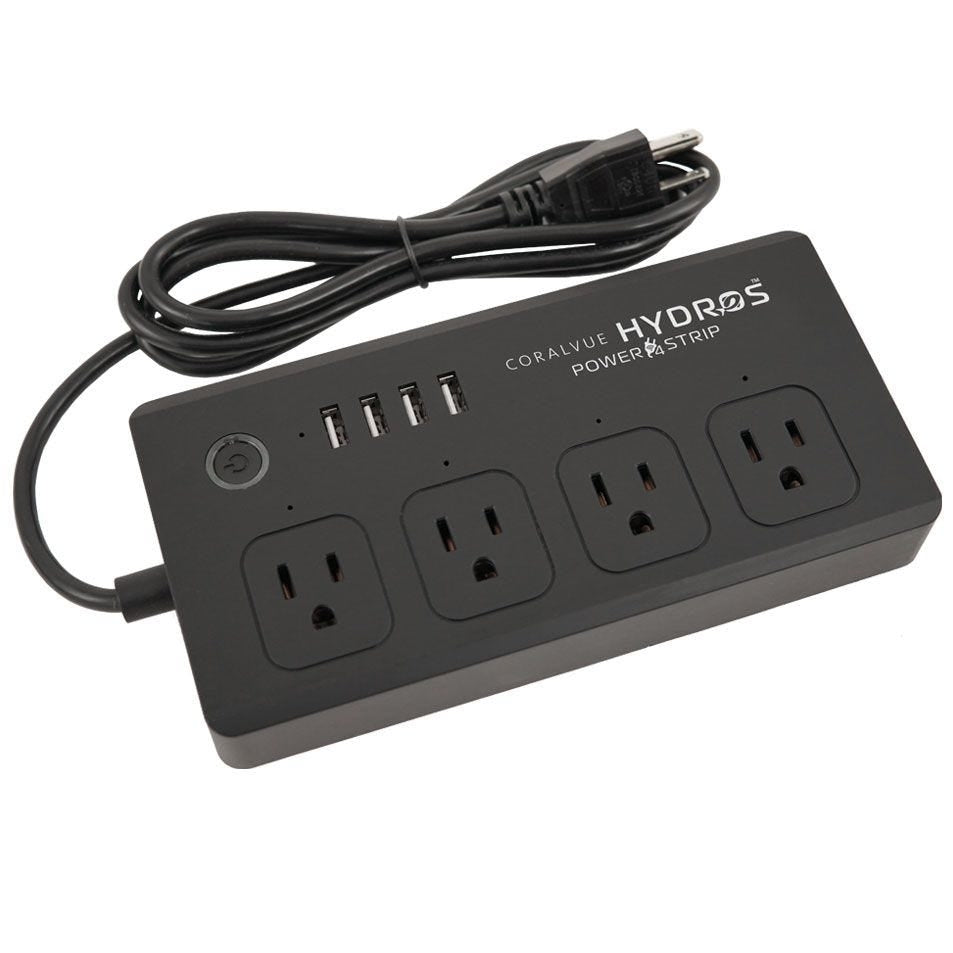

• 1x 4-Outlet WiFi AC Power Strip
• HYDROS App

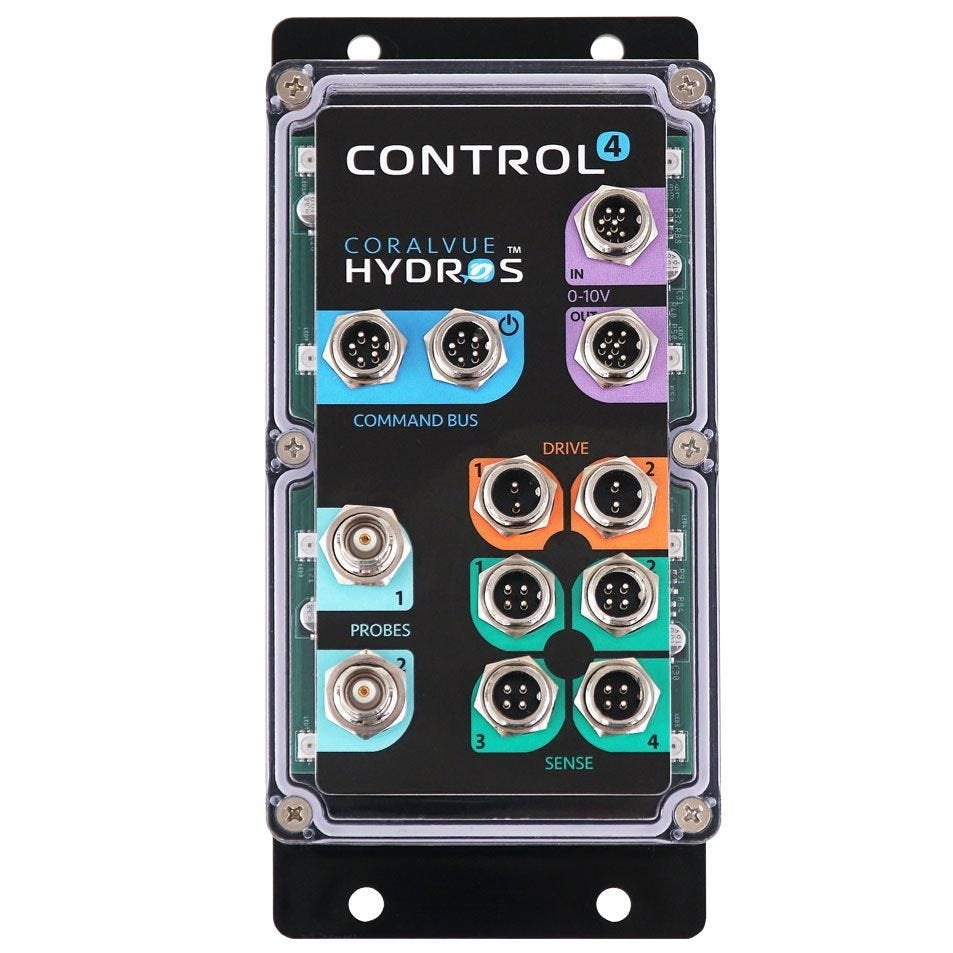

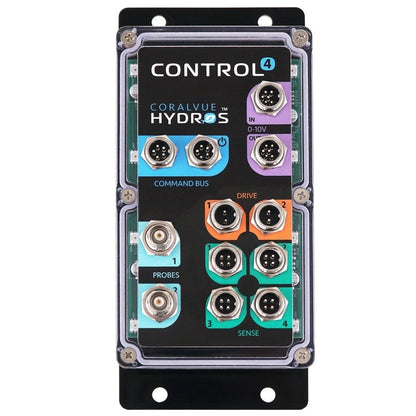

About Control 4

HYDROS Control 4 is a powerful and robust aquarium controller that can monitor temperature, pH, ORP, and water level, to name a few, and control pumps, timers, level sensors, and much more thanks to its technologically advanced design. It can be used as a standalone controller for saltwater aquariums, freshwater tanks, pond applications, or it can be added to other HYDROS Controls to build a more extensive system. The Control 4 operates on a HYDROS Safety Net and is rated IP-65 to keep your equipment and aquatic life alive and thriving.

Versatile and Expandable without Extra Modules
Use any HYDROS device by itself or connect multiple devices as part of a larger automated aquarium system with NO single point of communication failure. Every HYDROS product is a smart device with its own CPU and scheduling capabilities.

IP-65 Rated – Splash Proof, Dust Proof, and Secure Connection
HYDROS devices look like industrial controllers because they are built to function in the harsh environment of a marine aquarium. The IP-65 rated HYDROS enclosure, and aircraft-style connectors ensure long term reliability in the face of splashes and corrosive salt spray.

What you can expect from your HYDROS Smart Device
Control your HYDROS device(s) from anywhere in the world using the technologically advanced HYDROS cloud-based app
Ability to monitor and control your HYDROS device(s) locally through WiFi
A fast dual-core 32-bit processor that allows control decisions to be made within each device
Internal health monitoring to report voltages, currents, CPU status, and the internal temperature of each device
HYDROS Command Bus connections to transfer data and power to devices

Sense Port (4 Available)
The Sense Port is a new concept in aquarium parameter measurement. HYDROS devices include several Sense Ports. A Sense Port is a generic input port that can accept data from numerous different types of sensors.

Sense Ports currently support:

• Temperature probes
• Optical level sensors (single and dual)
• Capacitive non-contact liquid level sensors
• Rope leak detectors
• Point leak detectors
• Flow rate sensors
• Magnetic switches
• Push-button switches

Drive Port (2 Available)
The Drive Ports provide switched 12V DC power for running small lights, motors, pumps, fans, and other accessories. The exact current being supplied by each port is continuously monitored by the Control, so if a motor or pump quits drawing current or draws too much, you will be immediately notified.

Accessories currently supported include:

• Auto Top-Off (ATO) pumps
• Cooling fans
• Cabinet LED lights
• Solenoids to control reverse osmosis systems

Probe Port (2 Available)
One of the most remarkable ports on the HYDROS Control 4 is the Probe Port. You can connect an ORP or a pH probe to the Probe Port but, this is no ordinary pH input! The circuitry is based on an ultra-high-quality input chip specifically designed for these types of probes. Each pH input provides digital galvanic isolation from the rest of the system. Galvanic isolation prevents interference with other accessories connected to the system like motors and pumps. Digital Galvanic isolation preserves the accuracy of the measurement by converting the signal to a digital domain before crossing the isolation threshold.

0-10V Port
The HYDROS Control 4 has 0-10V I/O (input and output) ports that allow it to control and receive commands from other HYDROS devices and accessories from other brands. A legacy automation system can provide input via the 0-10V Ports. They can control variable speed pumps and can also be used to monitor simple switch closures, like push buttons or float switches.

Command Bus (2 Available)
The HYDROS Command Bus is used to power the Control as well as communicate with other HYDROS devices for the ultimate failsafe.

WARRANTY

CoralVue, Inc. and HYDROS hereby guarantee this product to be free from defects in material and workmanship for a period of:

• One (1) year

Warranty is activated on the date of purchase.

This Standard Limited Warranty applies and is limited as follows:

• To the product only as long as it remains in the possession of the original purchaser.
• To the product that has not been subject to accident, misuse or abuse.
• To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
• That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
• That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
• Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
