Description

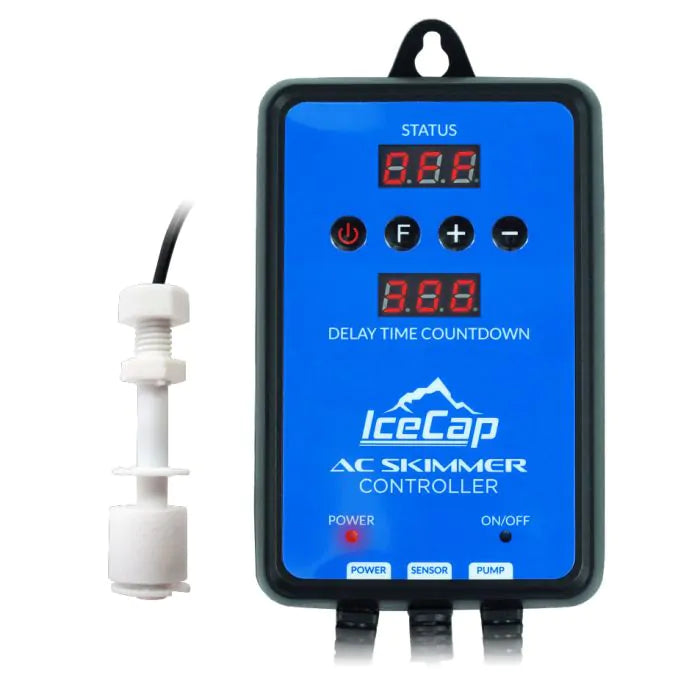

IceCap AC Skimmer Controller
Works with AC Protein Skimmers and Waste Collectors

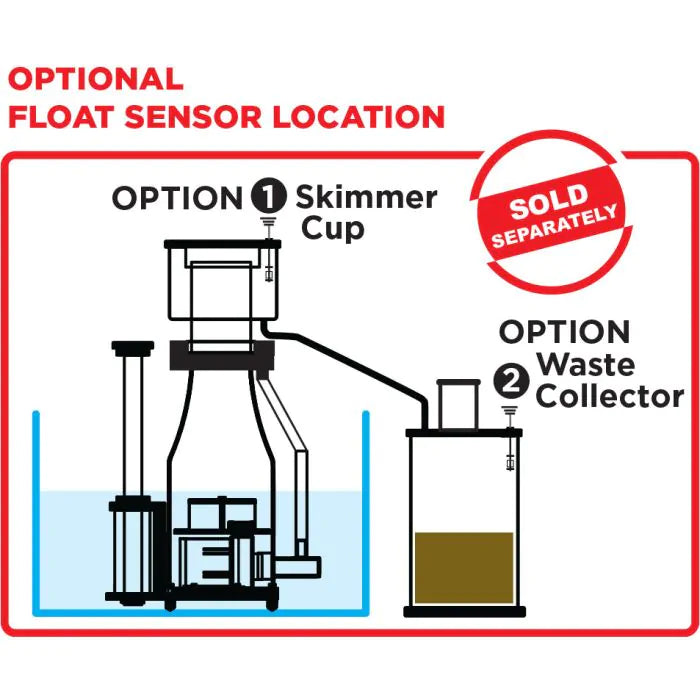

The IceCap AC Skimmer Controller easily connects to a skimmer lid or waste collector (sold separately) and protects from overflow. It also includes a time delay and feed mode for any AC protein skimmer. The controller with a float switch sensor and a single grounded power jack that supports up to 10 amps of power.

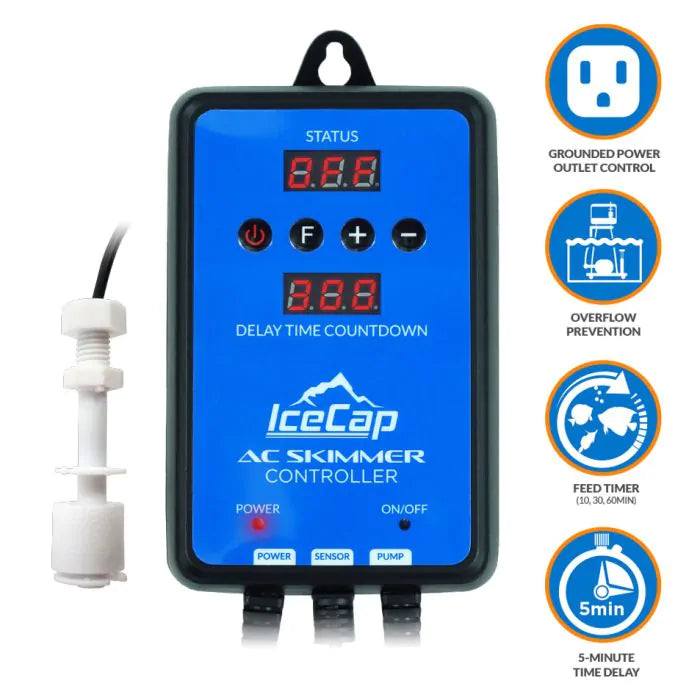

Features
- Grounded output heater control (single outlet)
- Accommodates skimmer pumps up to 10 amps

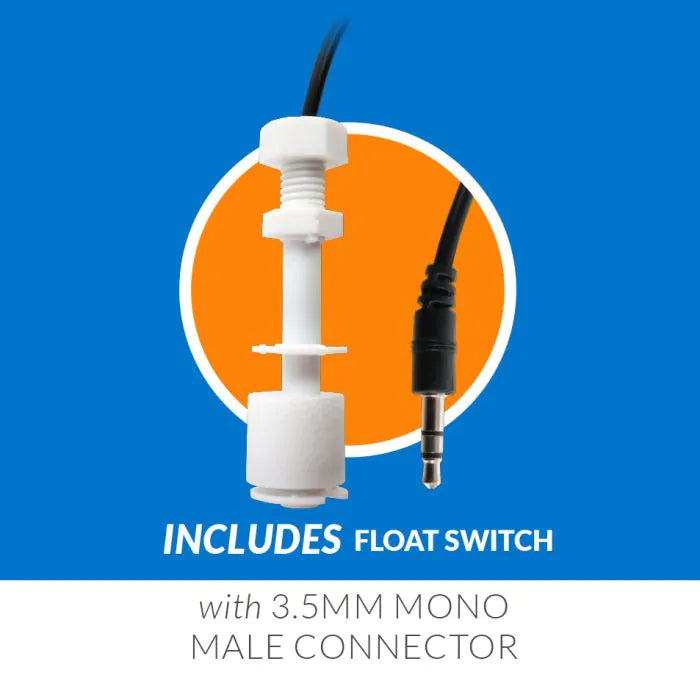

- Float Switch Overflow Protection
- Feed Timer (10, 30, 60min)
- 5-Minute Time Delay
- 1-year limited warranty
Controller Specifications
Input Power: 100~240VAC
Frequency: 50Hz/60Hz
Relay Contact Capacity: 10A
Controller Body Dimensions: 3.125in x 5.375in x 1.125in (LxWxH)
Float Switch Cord Length: 6ft
Pump Outlet Cord Length: 7in
Delay Time: 5 Minutes
Feed Timer Options: 10min, 30min, 60min
Working Span: 1-24 Hours
Float Switch Probe Hole Size: 3/8in
Controller Only - Requires protein skimmer and/or waste collection container.
NOTE: For Indoor household use only

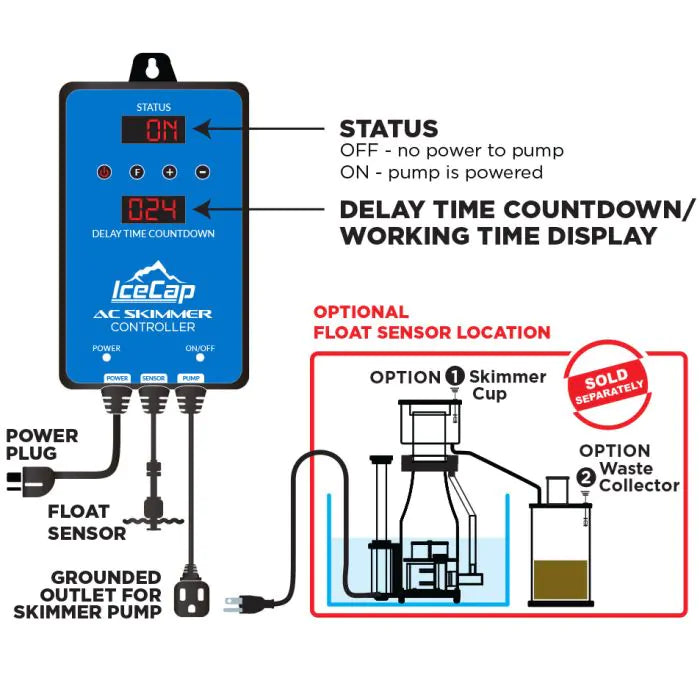

Red <POWER> LED indicates power ON
Blue <ON/OFF> LED indicates heater power is ON

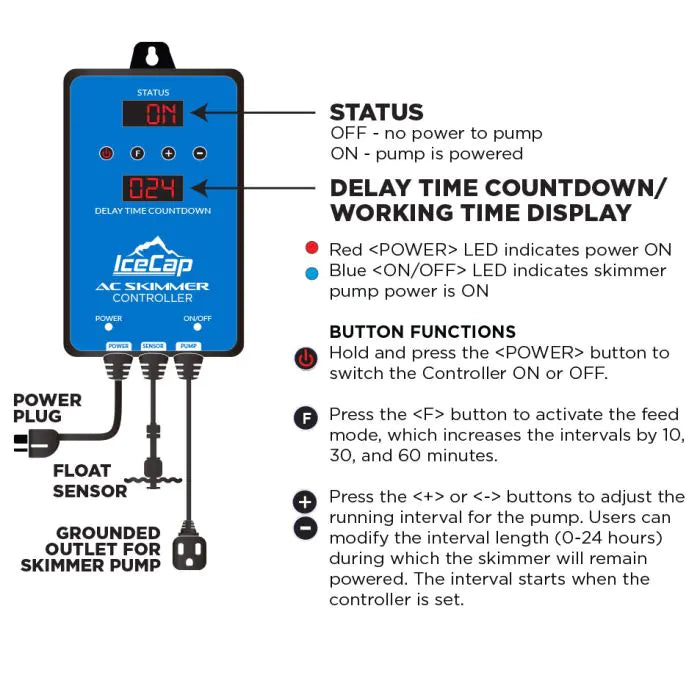

Button Functions
Hold and press the <POWER> button for 5 sec. to switch the Controller ON or OFF.
Press the <F> button to activate the feed mode, which increases the intervals by 10, 30, and 60 minutes.
Press the <+> or <-> buttons to adjust the running interval for the skimmer pump. Users can modify the interval length (0-24 hours) during which the skimmer will remain powered. The interval starts when the controller is set.
WARRANTY
CoralVue, Inc. and IceCap hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
