Description
Modern Design and Functionality

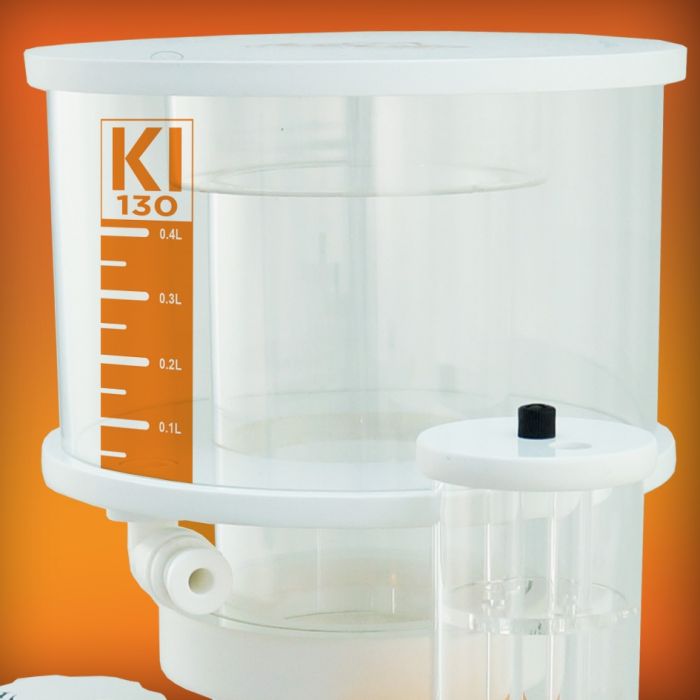

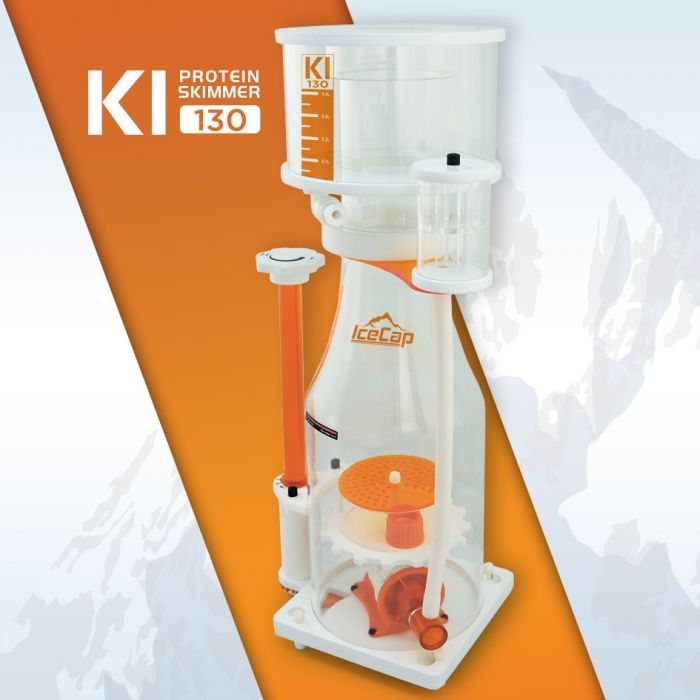

The IceCap K1 130 is a remarkably compact skimmer that offers a new level of refined filtration for marine aquariums ranging from 80 to 140 gallons. All aspects of the skimmer were implemented to surpass many challenges other skimmers on the market miss out on.
Compact & Built to Last
Master crafted from robust PVC and high-quality acrylic. All components are marine safe and refined in every aspect to provide the latest enhancements in foam fractionation and the highest in quality.
The elegant “Beer Bottle" curve of the skimmer body naturally stabilizes the air and water mix as they transition upward within the reaction chamber. An impressively compact footprint makes it the ideal candidate for tight sump applications. Every aspect of the skimmer disassembles completely for easy service.
Quiet Performance & Control

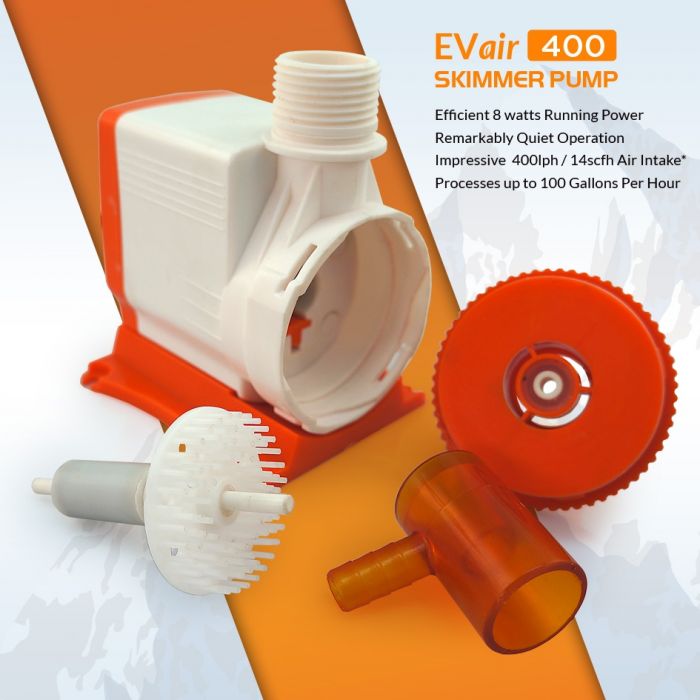

At the Core of the IceCap K1, you will find the EVair 400 skimmer pump built to be highly durable and packing a ton of efficient performance. It's easy grip and twist-Locking access to the pinwheel for easy service.
The pipeless output offers fine-tuning and trouble-free underwater outflow plus quiet operation. Our pipeless design not only saves on space but also allows the outgoing water to exit on the side of the skimmer and below the water surface providing splash-free circulation in the sump.
Located much lower in the reaction chamber, the unique bubble dispersing chamber offers a multi-stage diffusion of water, additional contact time for enhanced foam stability.
Bioload Handling
The bioload of an aquarium refers to its ability to process waste in proportion to tank volume. Protein skimmers work best when properly matched with the bioload of the system.
(EXCLUDING SUMP)
- Heavy
- Medium
- Light
- 80 gallons
- 100 gallons
- 140 gallons
Impressive Performance - Remarkably Small Footprint
- Distinctive Turbulence Reducing Body
- Solid PVC & Acrylic Construction
- Bubble Dispersant Chamber
- Novel Pipeless Output Valve
- Efficient & Quiet Operation
- Disassembles Completely for Easy Cleaning & Maintenance
- In-Sump Installation Only
K1-130 Technical Specs
Skimmer Body: 5in
Footprint: 7.3in x 5.6in
Total Height: 19in
Cup Drain Size: 8mm ID / 12mm OD
Recommended Sump
Water Height: 6 - 8in
Pump Information
EVair 400 Pinwheel Pump
Power Consumption: 8watts
Air Draw: 400lph / 14scfh*
Water Draw: ~100gph
*Air and water results will vary depending on aquarium setup
Warranty
- One(1) year warranty on pump and Skimmer body
IceCap can not be responsible for consequential damages arising from the installation or use of this product. IceCap warrants the pump to be free from defects in material and workmanship under normal use and conditions for the warranty period from the date of purchase. CoralVue liability under this warranty shall be limited to repairing or replacing at CoralVue’s discretion, without charge. CoralVue will not be liable for any cost of removal, installation, transportation, or any other charges which may arise in a warranty claim.
NOTE: This warranty is void if the product is damaged through abnormal operating conditions, accident, abuse, misuse, unauthorized alteration, or repair. This warranty is valid only in North America and is non-transferable. Consumable spare parts are not applicable to the warranty.
WARRANTY
CoralVue, Inc. and IceCap hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Three (3) year warranty on pump body/housing
- One (1) year warranty on Controller, Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Click here to learn more.
PRODUCT SUPPORT
To submit a warranty claim, please visit our CoralVue Support Portal.
