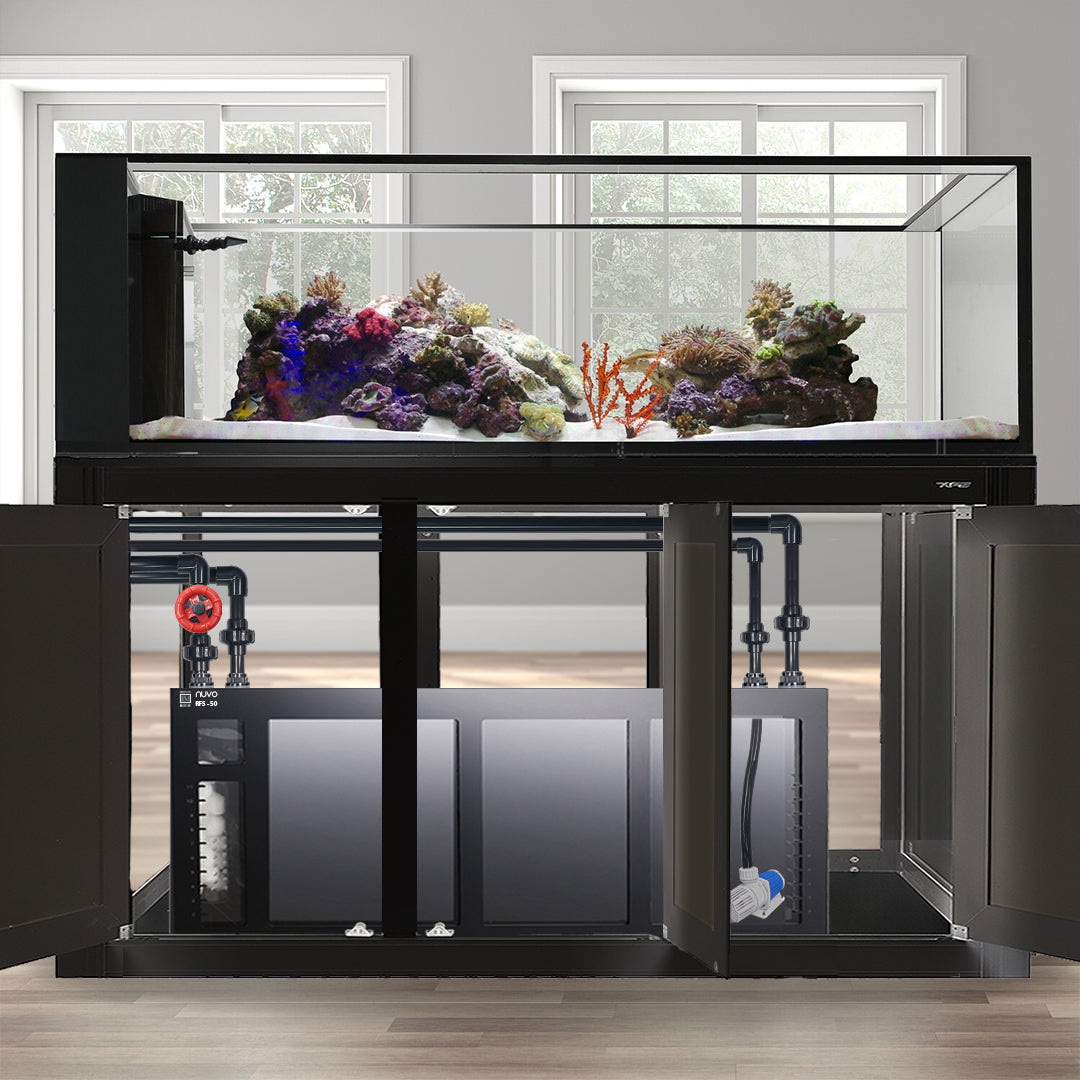

Innovative Marine INT 200 Gallon Peninsula Complete Reef System - Made To Order

NUVO INT Complete Reef System

INT Aquarium - A New NUVO Line overflowing with space

NUVO Aquariums have a long history of transforming the way you reef, and our next generation of Full-Size aquariums will change it again! From the start, Innovative Marine’s vision was to create an aquarium with an overflow system that flawlessly integrates with your dream set up.

Introducing the NUVO INT. The INT’s internal overflow system possess an industry first Trapezoid Infinity Overflow, dual LOC-LINE return nozzles and a custom "Bean Animal" style safety drain system.

When crafting a premium aquarium, no detail is ever overlooked or underachieved. Utilizing only the highest caliber components, the INT embraces Innovative Marine’s award-winning craftsmanship. Ultra-thick high clarity low iron glass, laser cut acrylic weir and our signature black silicone are just some standard features expected from a bloodline of distinction.

Completely silent, efficient, and fully customizable the NUVO INT aquariums were forged for the next generation of products and hobbyists.

FEATURES:

Aquarium:

• Approximately 200 Gallons

• Dimensions: 30" x 70.9" x 21.7"

• Solid Glass Overflow DIMS: 15.7" x 3.5" x 5.9"

• Crated Package Weight: 678 lbs.
• Recessed Euro Brace

• Trapezoid Infinity Coast to Coast Overflow

• 3 - 1" Pre-drilled "Bean Animal" Internal Overflow [Primary Drain, Emergency Drain and Secondary E-Drain]

• 1 – 3/4" Pre-drilled Return Hole

• Laser Cut Black Acrylic Weir w/ Slot Cut Rear Glass Panel

• Ultra-Thick 19mm High Clarity Low Iron Glass

• Euro Brace Thickness: 15mm

• Bottom Glass Thickness: 22mm

• Diamond Edged Flat Polished

• Black Silicone

• Pre-Assembled SafeScreen Mesh Screen Lid

• Pre-Installed Rubber Leveling Mat

• Included Plumbing: 1- 3/4" NUVO Nozzle [Return] 1- Primary Drain Assembly [Overflow] 1 - E-Drain Assembly, 1 -Secondary E-Drain Assembly 1- Return Hose Assembly

• Recommended Return Pump Flow Rate: 1000-2000 GPH

APS Stand:

• Stand DIMS: Length: 30” Width: 70.9” Height: 35.4”

• Interior DIMS: Length: 24.5" Width: 66.5" Height: 33.75"

• Stand Package Weight: 115 lbs.

• 7- Door (1 Front, 6 Side Access)

• Anodized Aluminum

• Corrosion Resistant

• No Warping or Swelling

• Integrated Hardware

• Easy Set up (semi-assembled)
• Includes hex torque wrench

• Light Weight

• Modular

• Includes pre-cut Closed Cell PVC Foam boards
• Top and Bottom Magnetic Door Latches
• Side Access Doors
• Spacious interior for sumps
• 100% recyclable aluminum
• Color: Black

RFS50 Sump:

• 74 Gallon Capacity

• Dimensions: L 49.8" x W 18.8" x H 18.3"

• Weight of Sump in Box: 87.1 lbs.

• Weight of Sump: 81.6 lbs.
• Reinforced Double Walled Acrylic Frame Construction

• Silent Siphon Safety Drain Design

• Laser Etched Water Level Indicators (Front and Side Views)

• 3 - 1” High Quality PVC Bulkheads

• 1 - 3/4” High Quality PVC Bulkhead with Hose Barb Fitting

• Vertical Heater Compartment with Cord Management

• Drain Silencing Plates with Filter Sponge

• Acrylic Filter Media Cups - Includes High Performance Fiber Ball Media

• Accommodates 4” Filter Socks

• Adjustable Water Height Baffle in Protein Skimmer Chamber

• Polycarbonate Noise Reducing Lid Covers

• (With Protein Skimmer Cutout)

• Refugium Chaetomax LED Light Bracket

• *Light Sold Separately

• 1/4“ And 1/2” ATO Return Hose Barb

• 4 - Black RO/DI Push Fit Fittings

• Cord Management Hooks with Cutout Slots

• Black Adhesive Cord Holders

MightyJet XL - 2656 GPH DC Submersible Return Pump:

• Ultra Quiet DC Technology
• Run-Dry Protection

• One Touch Feed Mode
• Includes Controller
• Seven Speed Settings

• Min Flow Rate 1,062 GPH

• Max Flow Rate 2,656 GPH

• Dims 7" x 4.09" x 5.11"

• Max Watts 85W/24v DC

• NOT INTENDED FOR EXTERNAL USE

Complete Preassembled Plumbing Kit:

• Premeasured
• Glued
• Connects aquarium drains and returns to sump
• PVC bulkheads
• Includes siphon drain gate valve specifically made to be used in Saltwater
• Assembly requires tightening of bulkheads and unions.
