Lifegard Aquatics Pro-MAX Ultraviolet Sterilizer - 120 Watt

  • 3″ Standard High Output UV 90W
  • For Aquariums up to 900 Gal
  • For Ponds up to 14500 Gal
  • Max Water Flow Algae & Bacteria UVC 30,000 µW/cm2: 4000 GPH
  • Max Flow Rate: 6000 GPH
  • Part Number: R450108

Lifegard AquaticsSKU: 788379318239

- Availability: Backordered
   This item ships or is available for pickup in-store in 3-10 business days after order.
- Shipping charges apply
Price:
Sale price$1,071.64

Description

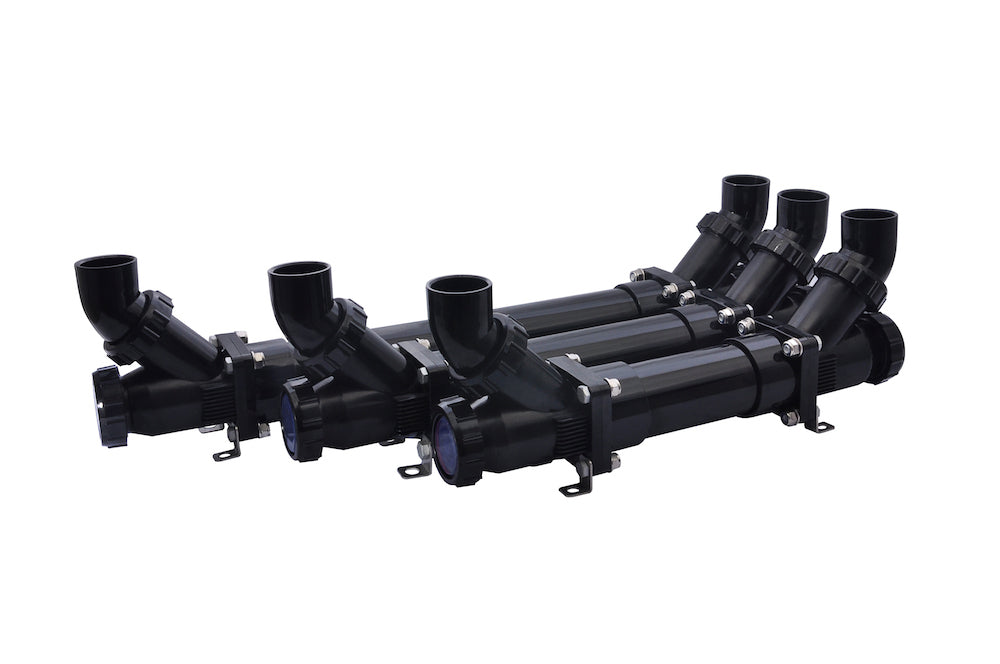

Lifegard Aquatics Pro-MAX Ultraviolet Sterilizer

Lifegard Aquatics introduces the Pro-MAX™ UV Sterilizer, featuring a patent-pending, flow-through design with less restrictive angled inlet and outlet ports requiring less plumbing. This unique design enables easy installation of new or replacement systems as it can be positioned in multiple ways to fit any tight space. Available with 3″ housing in 25, 40, 55, 90 and 120 Watt models. Each Pro-MAX™ features a High Output UV Bulb, Internal Protective Sleeve, and UL Listed Ballast which counts down the number of days until you need to replace the bulb. Maximum Operating Pressure 30 PSI.

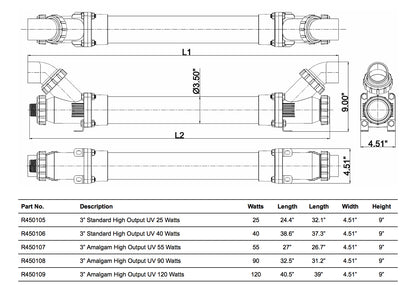

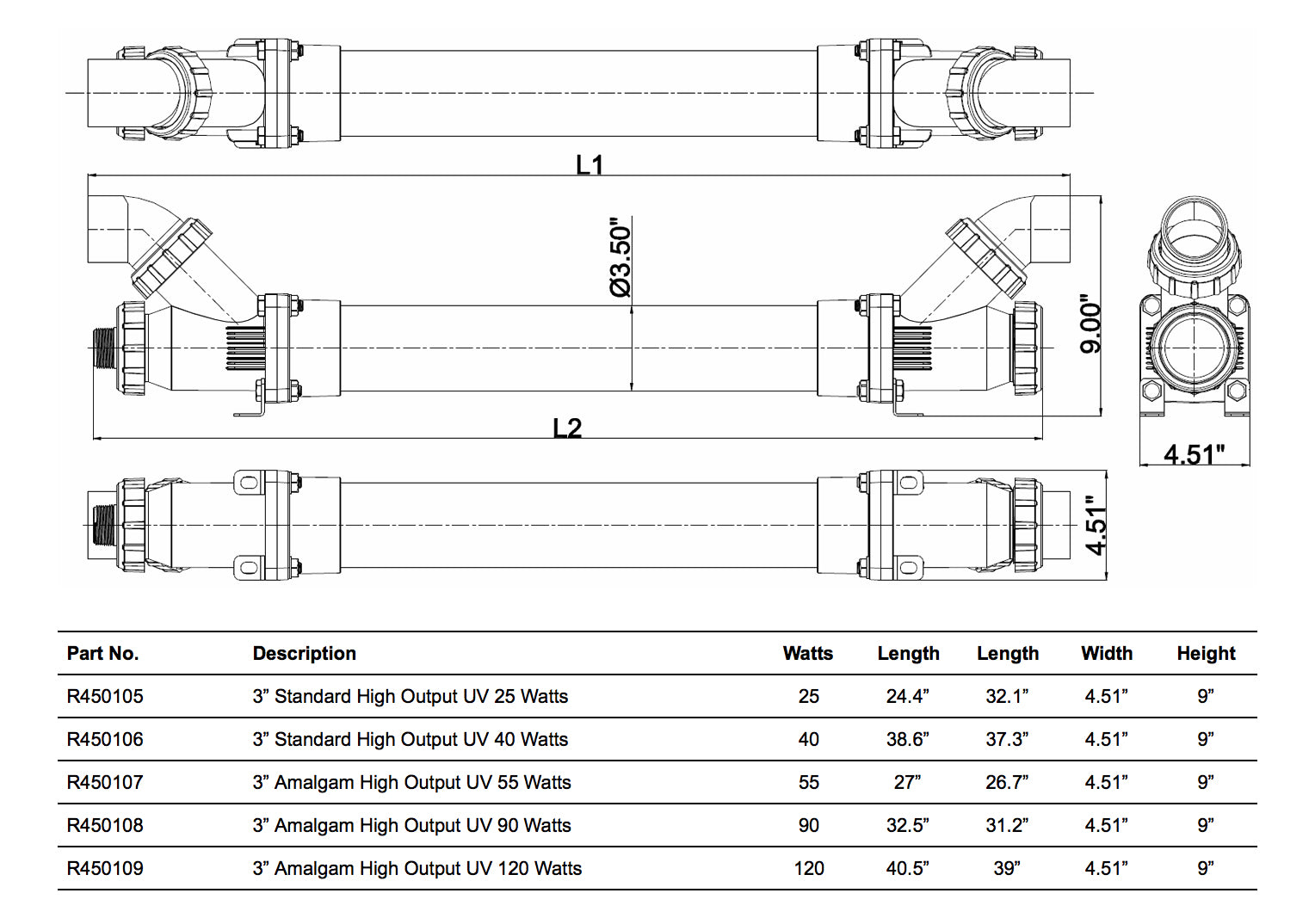

Part No. Description Lamp Watts Lamp Current UV Output Micro Watts UVC µW/cm Lamp Life (Hours) UV-C Output (Watts) Max Flow Rate Max Water Flow Algae & Bacteria UVC 30,000 µW/cm2 Max Aquarium Size Max Pond Size
R450105 3″ Standard High Output UV 25W 25 1.2A 0.05 50 9000  7.5 1000 GPH  550 GPH 130 Gallons 2400 Gallons
R450106 3″ Standard High Output UV 40W 40 1.2A 0.125 125 9000 12 2500 GPH 1200 GPH 250 Gallons 4700 Gallons
R450107 3″ Amalgam High Output UV 55W 55 1.2A 0.15 150 9000 16.5 3600 GPH 2100 GPH 350 Gallons 6000 Gallons
R450108 3″ Amalgam High Output UV 90W 90 1.2A 0.27 270 9000 28 4600 GPH 2800 GPH 650 Gallons 11000 Gallons
R450109 3″ Amalgam High Output UV 120W 120 1.2A 0.32 320 9000 37 6000 GPH 4000 GPH 900 Gallons 14500 Gallons



For Protozoa 180,000 µW/cm2 – Cut down the flow rate by minimum 1/6th. Monitor the temperature when reducing the flow as low flow may result in extra heat that can cause damage to the UV and system.

All HO UV Sterilizers have 2″ Union Inlet/Outlet.

“Suggested” Water Flow Rates are New Lamp Conditions. All water flow rates incorporate a 90% UV transmittance factor. UV Lamp Useful “Effective” Life is 9000 hours.
