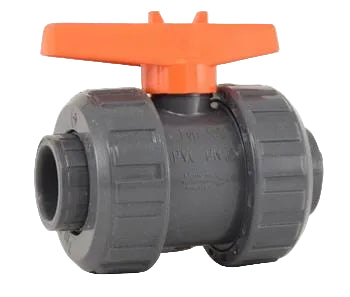

Praher S6 PVC True Union Ball Valve

The S6 series ball valves are true union PVC valves designed with multi directional blocking capability and a serviceable internal design. The valve allows for easy dismantling, mounting, and removal without additional tools, improving handling and maintenance.

The design includes a floating ball system for improved sealing, along with a blow out proof stem equipped with dual O rings for reliability and safety.

The valve handle can also be used as a tool to remove or adjust the seat carrier, supporting easy servicing and adjustment.

Manufacturer Specifications (Praher S6)

• Design: True union with multi directional blocking capability

• Body Material: PVC-U

• Ball Seats: PTFE (Teflon) or HDPE

• O Rings: EPDM

• Handle: ABS

• End Connections: Socket (slip) or FNPT threaded

• Pressure Rating at 22°C:
  • 232 PSI (1/2 inch to 2 inch)

  • 146 PSI (2.5 inch to 3 inch)

  • 90 PSI (4 inch)

• Features:

  • Adjustable ball seating joint

  • Double sided blocked ball

  • Double stem sealing (dual O ring)

  • Tool free dismantling and servicing
