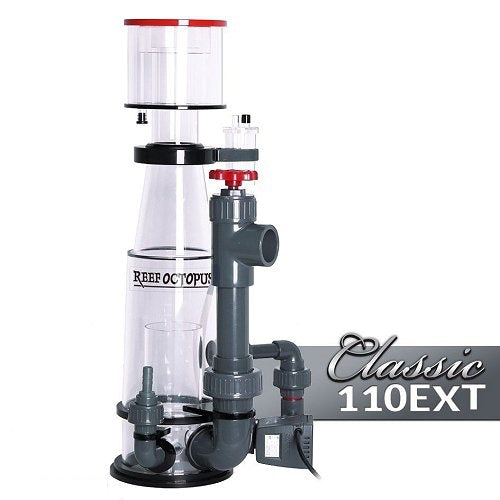

Reef Octopus Classic 110 EXT Recirculating Protein Skimmer

Product Manuals & Documentation

Reef Octopus As one of the Reef Octopus Classic Series skimmers, this Classic 110ext will provide great performance for well stocked aquariums up to 130 gallons. It is constructed from high quality cast acrylic, o-ring sealed union pump mount, bubble diffuser top not craftsmanship powered by the Aquatrance 1000s pinwheel pump. The skimmer has a gate valve which allows for more precise control of water level. The collection cup has a quick release neck for easy removal for cleaning. It requires 1/2 inch of clearance to remove the cup. All Reef Octopus skimmers uses high grade metric plumbing parts.

• Bubble Diffusing Chamber and Hybrid Cone Body that naturally reduces and stabilizes the foam production; This means less turbulence in the neck area and more contact time for organics to rise and collect
• Oversized Air Silencer for quiet operation and airline mount
• Collection Cup with flow directional guide, drain and unit venting
• Precision Control with the easy to turn output flow valve
• Power The Aquatrance 1000s pinwheel pump offers super efficiency and the very best in performance.

Filtration Handling

• 130 Gallon – Light Filtration Demand
• 90 Gallon – Medium Filtration Demand
• 75 Gallon – Heavy Filtration Demand

Technical Specs

• Body Size: 5″
• Footprint: 10.4″ x 9.25″
• Neck Size: 2.5″
• Total Height: 22.8″
• Output Size: 40mm - Comes with Metric to British Adapter to 1.25”pvc
• Output Height: ″
• Inlet Size: 1/2"
• Max Feed Rate: 265GPH

Note: Suggest Feed Rate is 1.5-2 times the system volume

Pump Information

• Aquatrance 1000s Pinwheel Pump
• Max Flow: 92gph
• Max Air: 420L/H, 15SCFH
• Power Consumption: 9watts
• Dimensions: 4.5″ x 2.4″ x 3.6″ *Air and water results will vary depending on aquarium setup

Warranty - 2 year warranty on pump/1 year on rotor, 1 year on body
