Tunze Turbelle High Jet Pump - 5000.021

Powerful, Quiet, and Versatile

• Can be used submersed in water or externally
• Use to replace or upgrade Tunze Osmolator ATO pump
• High delivery height in a small package
• Protection against reverse polarity, dry running, and blockage
• Saltwater-resistant construction
• High-tech BEMF BLDC motor
• Hose and hose connector included
• Standard 1/2" and 1/4" connectors
• Compatible with existing and older Osmolator devices
• Made in Germany
• 5-year manufacturer warranty



The Turbelle High Jet is a replacement pump with safety extra low voltage 12 V DC for the Osmolator Nano 3152 and Osmolator 3155, belonging to a new generation of centrifugal pumps with a high delivery height and small dimensions. They are very quiet and almost wear-free thanks to the new pump bearings and high-performance drive. It is suitable for use in or out of the water and operates on safe extra-low voltage. Plus, with integrated safety measures like protection against reverse polarity, dry running, and blockage, you can be sure your aquarium is in good hands. The High Jet also comes with a high-tech cable, hose, and hose connector, all designed to withstand the harsh conditions of a marine environment. And with standard connectors for high compatibility, you can easily upgrade your existing dosing system without restrictions.



Big Performance, Small Package

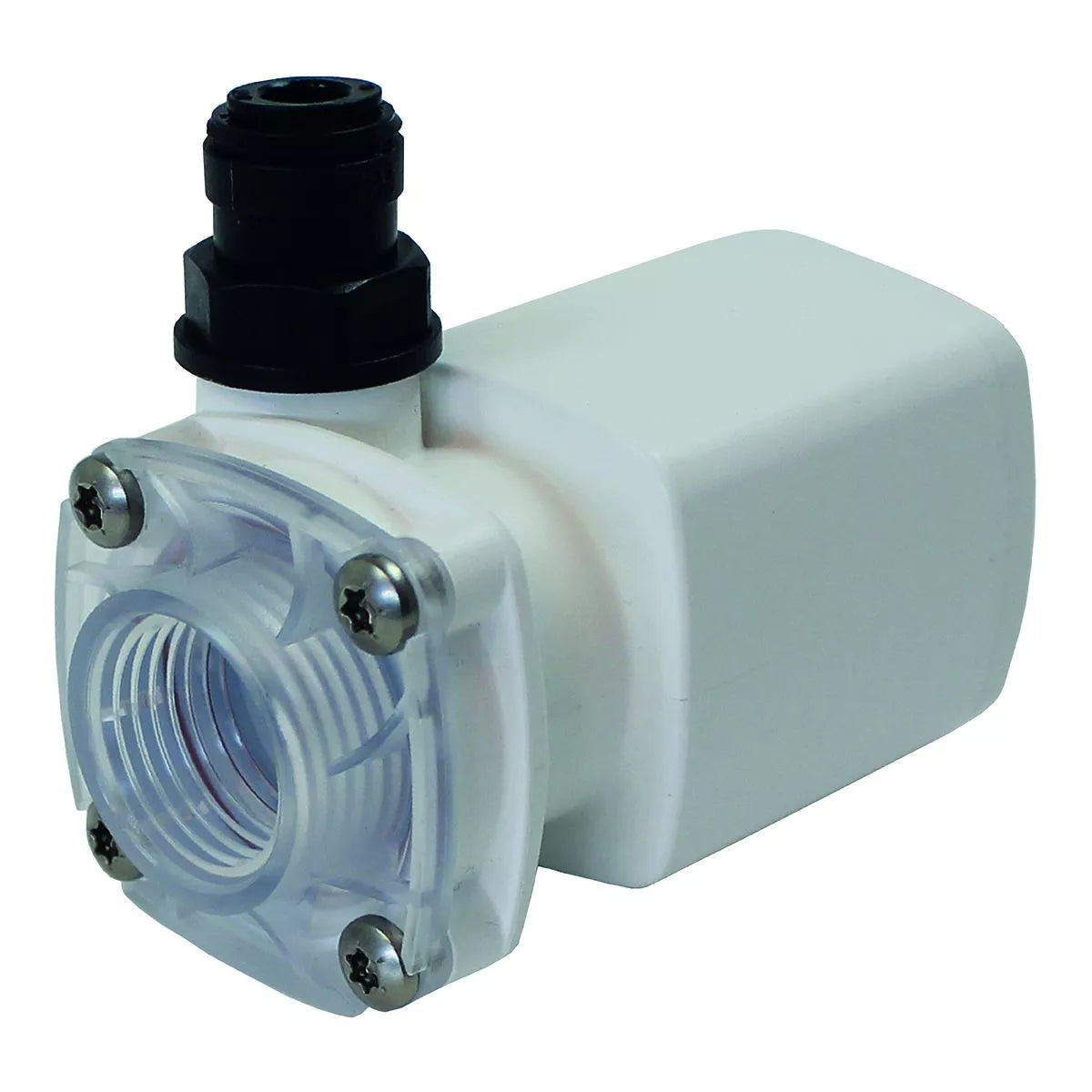

With a maximum delivery head of 6.2 m (20.3 ft), the Turbelle High Jet is designed to handle even the most demanding special cases. It is thermally designed for external operation but can also be operated fully submerged. The ½ inch thread on the suction side and ¼ inch thread on the pressure side make it highly compatible with existing and older devices.



Built to Last

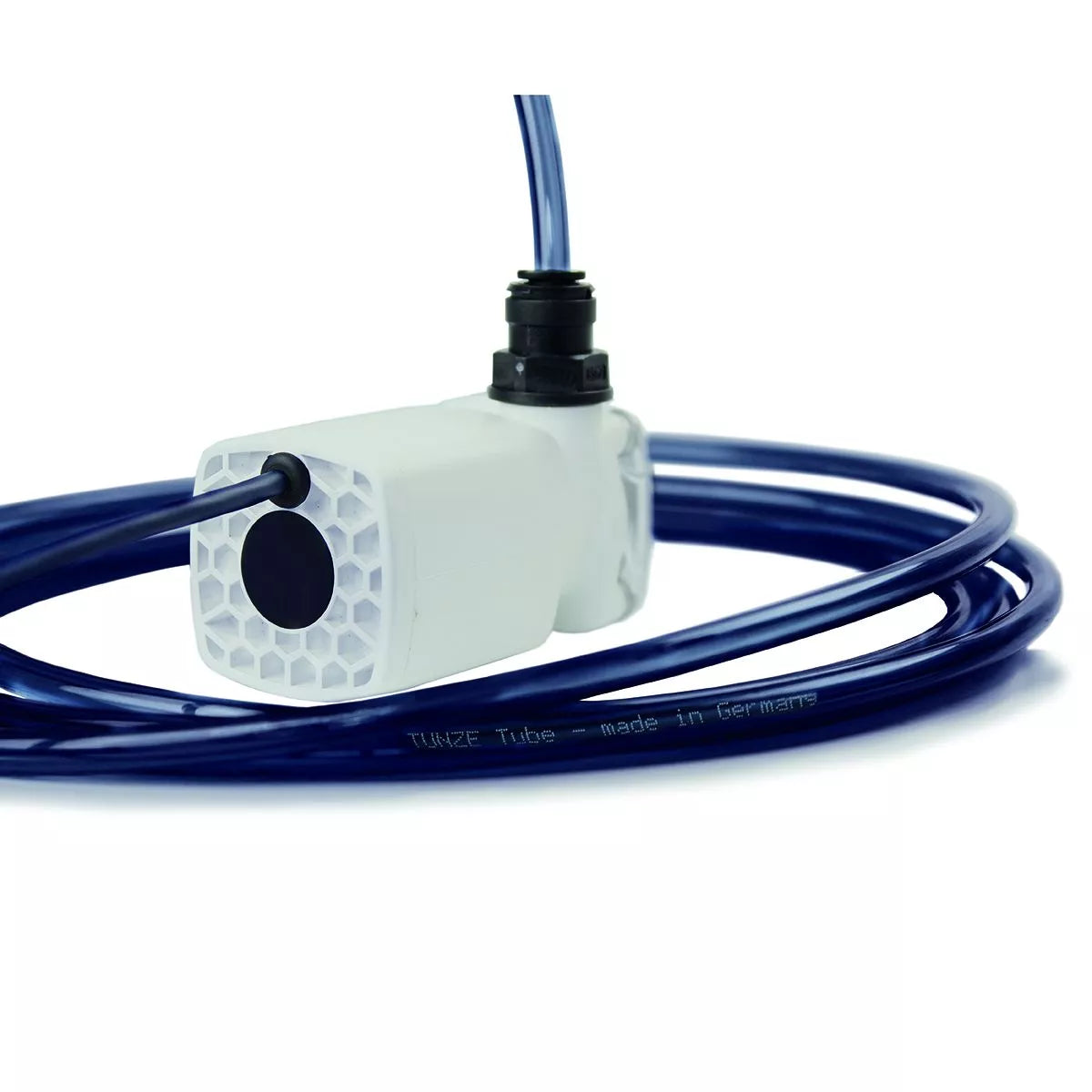

The Turbelle High Jet's high-tech cable is specially designed for demanding marine environments, with remarkable abrasion and seawater resistance, extreme resistance to mechanical impact, and an extra high-contrast intermediate cable sheathing for early damage detection. The set also includes a corrosion-resistant, screw-in push-in fitting (¼ inch BSP to ø6 mm) and a low-emission, hydrolysis-resistant, microbe-resistant PU hose made entirely in Germany.

The pump's BEMF BLDC motor technology is free of cogging torque and operates on a real 3-phase sine wave for incredibly quiet operation. The precisely manufactured hydrodynamic bearing with excellent emergency running properties and high-tech materials ensure maximum wear resistance.

The High Jet comes with a 5-year warranty and exclusive service. And with its Made in Germany status, you can trust in the quality and precision of each component - from the special plastic parts to the winding of the motor and the assembly of the individual parts.





Specifications

Included PU Hose - 3 m x ø6 mm / 118" x ø 0.24"

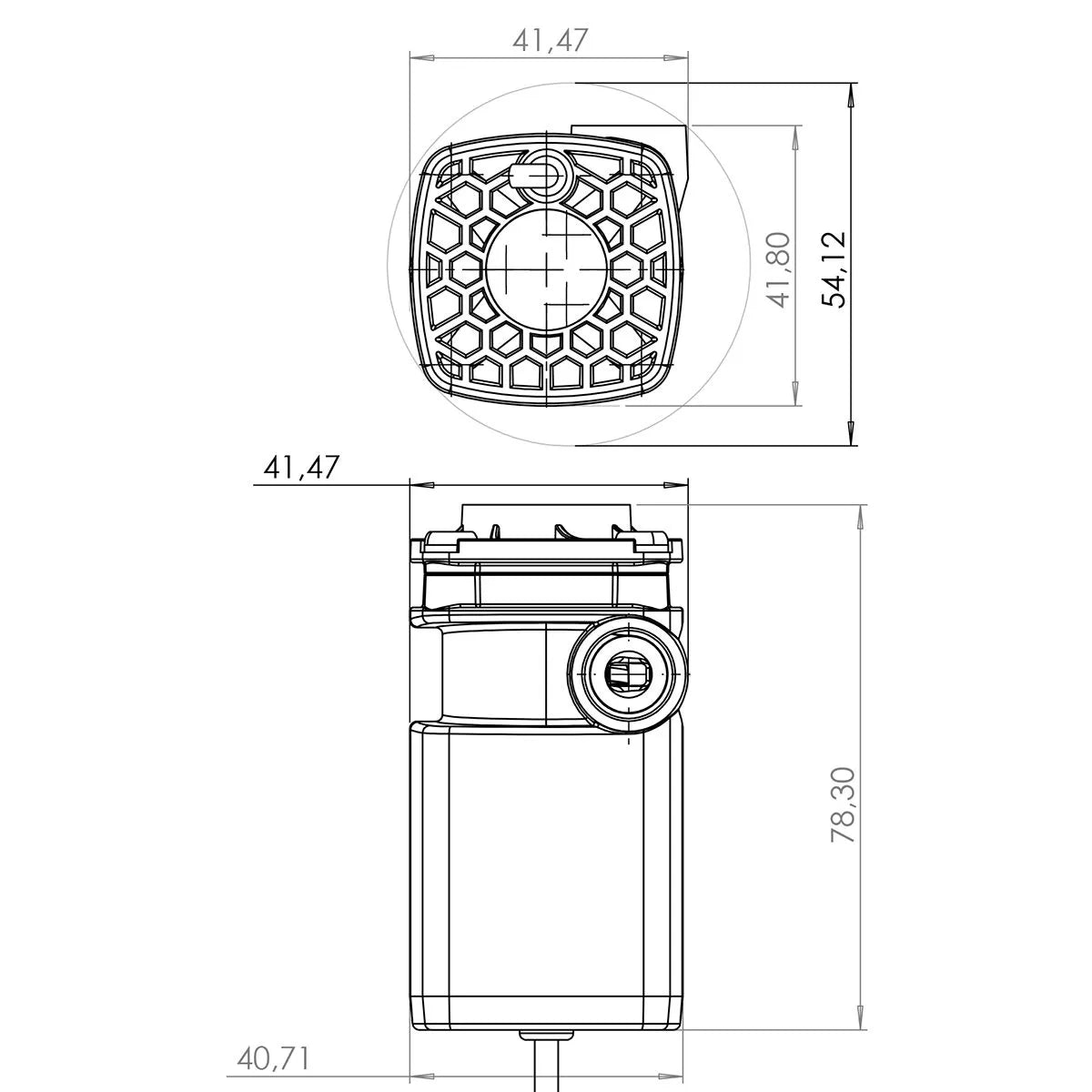

Dimensions (L x W x H) - 78 x 41 x 41 mm (3.1" x 1.6" x 1.6")

Performance with 6 mm tube (0.24") -
1.0 m - 120 l/h (39.4" - 31.7 US gal.)
1.5 m - 100 l/h (59.1" - 26.4 US gal.)
2.0 m - 83 l/h (78.8" - 21.9 US gal.)
Max Head Height: 6.2 m (20.3 ft)
