Description

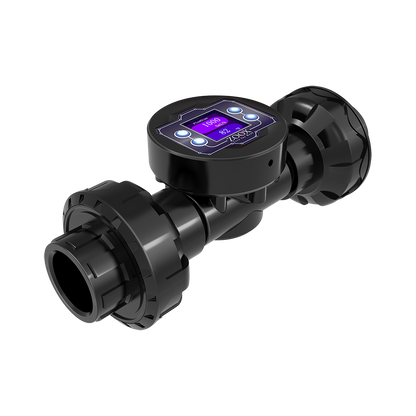

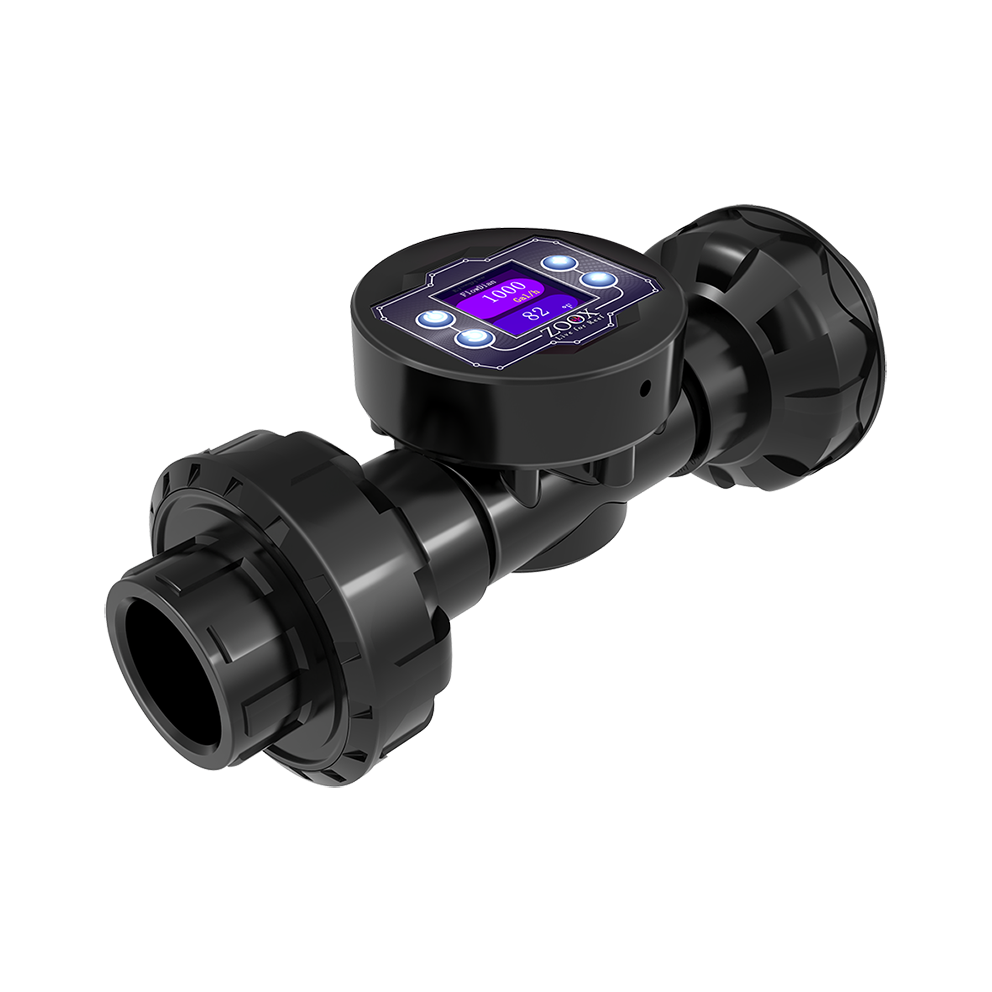

ZOOX Flow Dian Flow Meter
Features:
- Standalone monitoring of actual flow rate and temperature

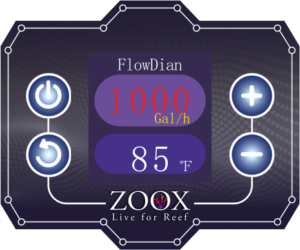

- Display and alarm (Local / Buzzer)
- Customizable monitoring range
- Temperature calibration
- Available to use with 1" and 3/4" (Included Compact Reducer)
- 2 Models available (Unit by US Gallon and Fahrenheit, Liter and Celsius)
- Support USART Communication for Automation.
Specification
- Suitable for 1" or 3/4" (Included Reducer)
- Flow sensor range 15-2000GPH
- Temp sensor range -32 to 140 F
- Accuracy 1% (Calibrated)
- Display refresh rate Flow rate per 1s, Temp per 2s
- Pressure <0.3MPA
- Protection High-Humidity proof
- Power USB3.1 5V1A
- Connection Standalone / USART*
USART Protocol
USART Communication
BaudRate: 115200S
topBits: 1
DataWidth: 8
Parity: NONE
Disclaimer
The FlowDian is used for testing actual flow rates. Actual flow rates may vary from the parameters specified by the pump manufacturer. Even pumps of the same brand and model may yield different data due to variations in pipe fittings, quantities, methods, and shapes. The flow rate displayed by the FlowDian is for reference only.
The temperature sensor built into the FlowDian detects only the temperature of the water passing through it. There may be discrepancies between this temperature and those detected by other temperature sensors at different locations. If necessary, customers can choose to use the calibration function to make adjustments.
