Description

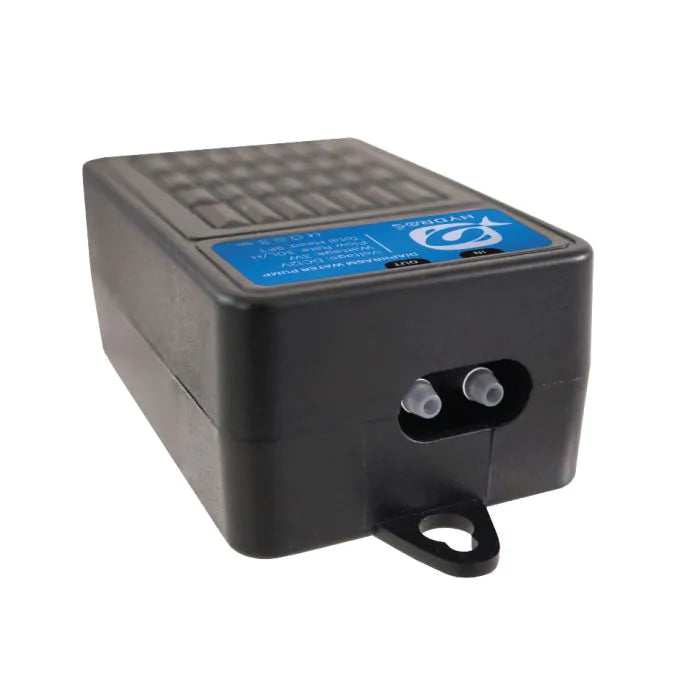

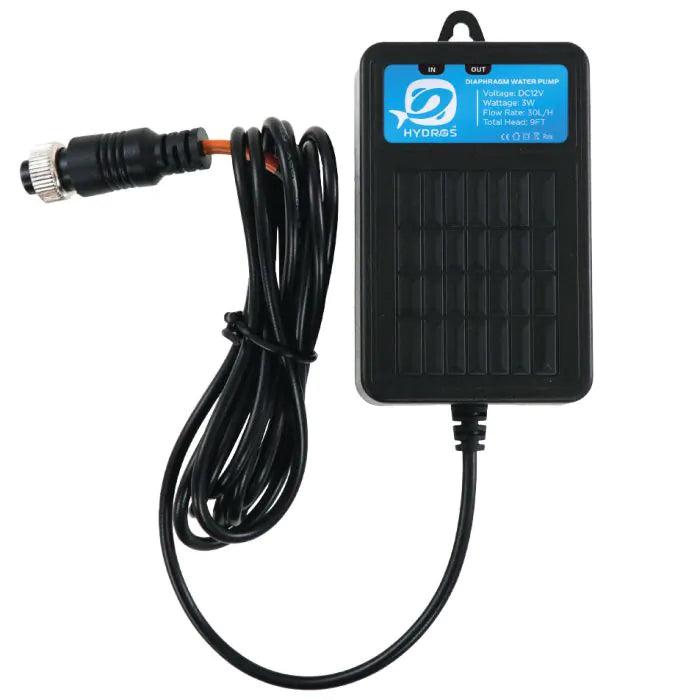

Diaphragm Water Pump
The HYDROS Diaphragm Pump is a small 12V Drive Port accessory that uses positive external displacement to move liquids. It is a smart alternative to standard internal auto-top-off (ATO) pumps. Fitted with a GX-2 connector to be powered and controlled by an available DRIVE PORT on your HYDROS Device.
Key Features:
- Self Priming
- Can Safely Run Dry
- Prevents Backflow Siphons
- Surface Mountable Pump
- Includes Tubing and Universal Holder

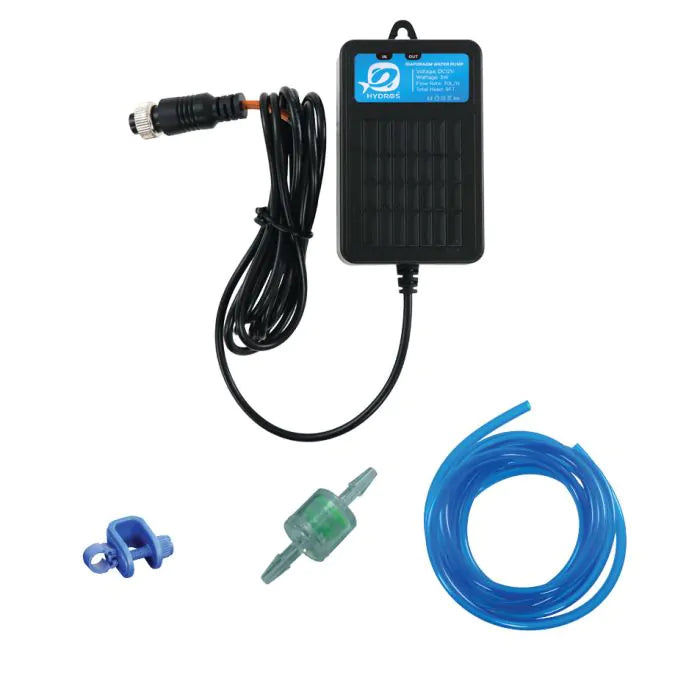

Includes:
HYDROS Diaphragm Pump (plugs into HYDROS Drive Port)
Universal Han-On Tubing Mount
Inline Intake Filter
Tubing 6.5ft (5/32in ID - 1/4in OD)
Pump Specifications:
- Diaphragm Pump Life: 500hrs
- Dimensions: 4 x 2.25 x 1.375 (LxWxH)
- Maximum Head: ~9ft
- Flow Rate: 8gph
- Power: 3w
- Cable Length: 6ft
- Tubing Size: 6.5ft, ID 5/32in, OD 1/4in
WARRANTY
CoralVue, Inc. and HYDROS hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
PRODUCT SUPPORT
To submit a warranty claim, please visit our CoralVue Support Portal.
